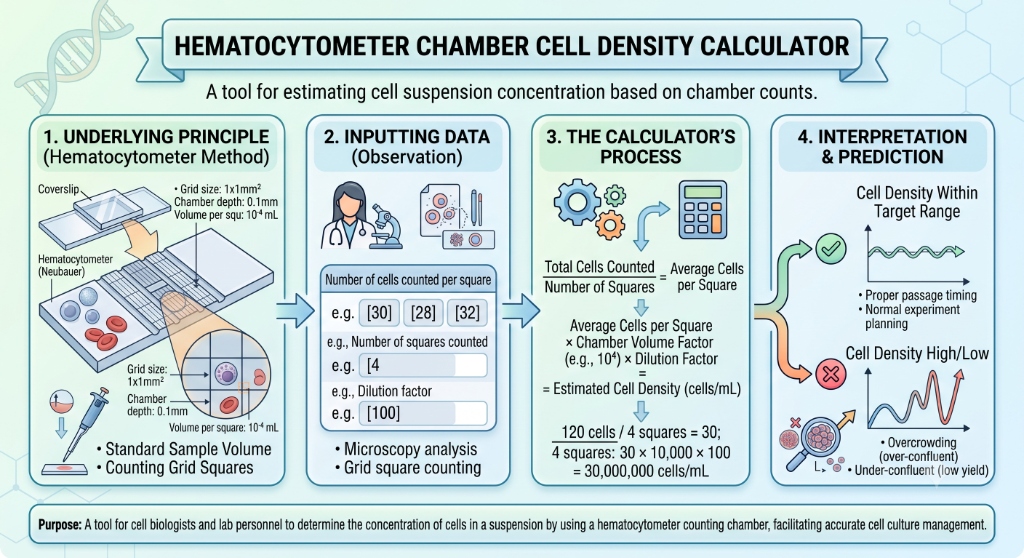

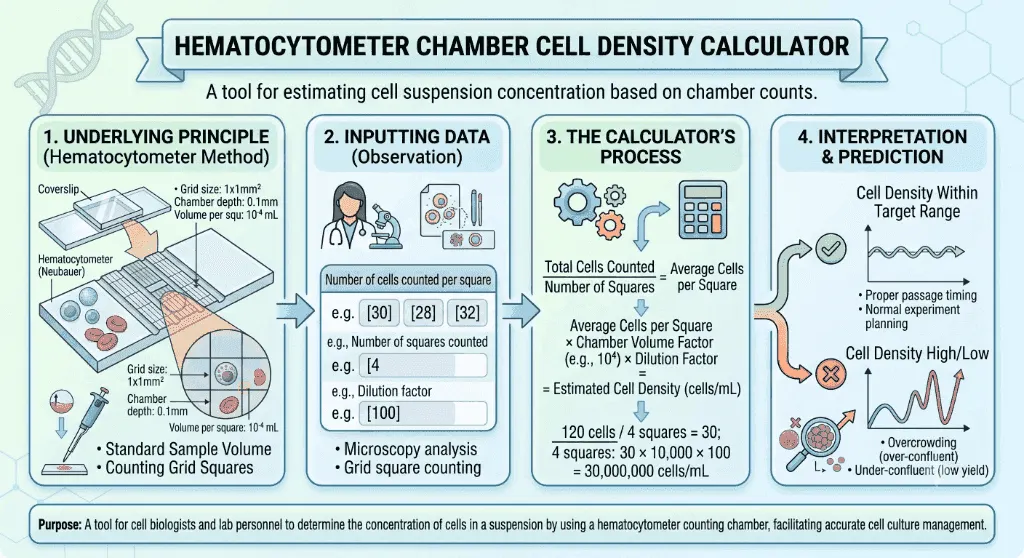

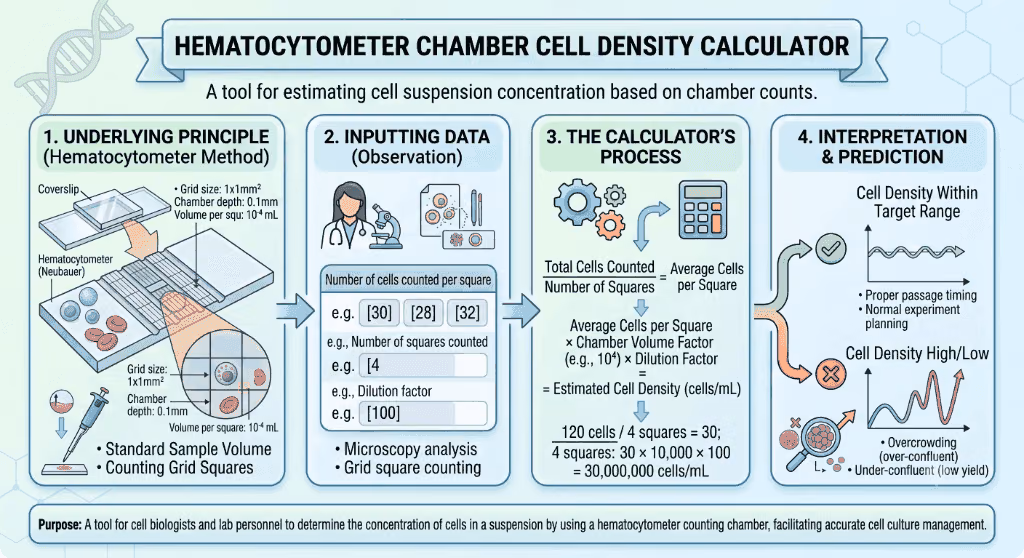

Hematocytometer Chamber Cell Density Calculator: Quantification & Viability Guide

1. Introduction

In modern biomedical research and industrial biomanufacturing, knowing the exact concentration of living cells in a suspension is essential. When administering CAR-T cell immunotherapies, oncologists must deliver an exact therapeutic dose of $2.0 \times 10^6\text{ viable CAR-positive T cells per kilogram}$ of patient body weight. In pharmaceutical bioreactors, technicians culture Chinese Hamster Ovary ($\text{CHO}$) cells at tightly controlled seeding densities to maximize monoclonal antibody production. In clinical hematology and neurology, emergency CSF cell counts differentiate life-threatening bacterial meningitis from viral infections within minutes.

How do scientists accurately count microscopic cells suspended in liquid volumes? How do we calculate cell viability to ensure our experimental cultures are thriving rather than dying?

The gold-standard laboratory instrument that has powered quantitative cell biology for over a century is the Neubauer Hemocytometer (also spelled haemocytometer or hematocytometer).

flowchart LR
    SUSP["🧪 Cell Suspension Sample
(e.g., Trypsinized T-Flask Culture)"] --> DILUTE["🎨 Trypan Blue Staining
1:1 Mix (Dilution Factor DF = 2)"]
    DILUTE --> LOAD["🧫 Load Neubauer Chamber
Capillary Loading under Coverslip (10 µL)"]
    LOAD --> COUNT["🔬 Count 4 Large Corner Squares
Apply Top & Left Inclusion Rule"]
    COUNT --> CALC["🧮 Concentration Formula
C = (Total / Squares) × 10⁴ × DF"]

2. Definitions

2.1 Simple Everyday Definition

A Hemocytometer is a precision glass microscope slide etched with a microscopic grid of known dimensions. By counting the number of cells inside a fixed grid volume under a microscope, you can calculate the exact concentration of cells in your entire bottle or flask (measured in cells per milliliter, $\text{cells/mL}$).

2.2 Formal Technical Definition

A hemocytometer is a specialized volumetric counting chamber manufactured with optical tolerance tolerances. A precision ground coverslip rests on two elevated lateral glass ridges, establishing a calibrated fluid depth of exactly $0.100\text{ mm}$ ($100\text{ }\mu\text{m}$) over a precision-etched grid.

The concentration of cells in the original stock suspension ($C_{\text{stock}}$) is given by:

Where: - $\sum N_{\text{cells}}$ is the total number of cells counted across $N_{\text{squares}}$ large squares. - $V_{\text{square}} = 1\text{ mm} \times 1\text{ mm} \times 0.1\text{ mm} = 0.1\text{ mm}^3 = 10^{-4}\text{ mL}$ ($100\text{ nanoliters}$). - The multiplication factor is $\frac{1}{V_{\text{square}}} = \frac{1}{10^{-4}\text{ mL}} = \mathbf{10,000\text{ (or } 10^4\text{)}}$. - $\text{DF}$ is the volumetric Dilution Factor (e.g., $\text{DF} = 2$ for a $1:1$ cell-to-dye mixture).

2.3 Vivid Real-World Analogies

3. History & Scientific Milestones

The invention of the hemocytometer transformed medicine from qualitative observation into quantitative cellular science.

timeline
    title Evolution of Hemocytometry & Cell Counting
    1874 : Louis-Charles Malassez : Invents first capillary counting chamber at Collège de France
    1878 : Georges Hayem & Karl Bürker : Introduce improved optical grid line rulings
    1904 : Paul Ehrlich : Discovers Trypan Blue dye exclusion for viable cell staining
    1920 : Otto Neubauer : Standardizes the 'Improved Neubauer' 9-square grid system
    1953 : Wallace Coulter : Patents electronic impedance cell counter (Coulter Counter)
    2010s : Digital Automated Counters : Introduce AI computer vision image-based hemocytometry

• Louis-Charles Malassez (1874): French physician and physiologist who built the first hemocytometer to diagnose severe anemia by quantifying erythrocyte numbers in human blood.
• Otto Neubauer (1900s): Standardized the Improved Neubauer Grid, featuring a central $1\text{ mm}^2$ grid partitioned into 25 groups of 16 mini-squares and 4 corner squares bordered by triple ruling lines, which remains the global standard ISO specification today.
• Paul Ehrlich (1904): Discovered that synthetic azo dyes like Trypan Blue selectively enter and stain dead cells with compromised plasma membranes while being actively excluded by live, metabolically intact cells.

4. Core Concepts & Theoretical Principles

graph TD
    subgraph Grid_Layout["Improved Neubauer Chamber (3mm × 3mm Grid)"]
        W1["Corner Square 1 (1 mm²)
Mammalian / WBCs"] --- T["Top Middle Square"] --- W2["Corner Square 2 (1 mm²)
Mammalian / WBCs"]
        L["Left Middle Square"] --- C["Center Square (1 mm²)
25 Groups × 16 Small Squares
RBCs / Yeast / Platelets"] --- R["Right Middle Square"]
        W3["Corner Square 3 (1 mm²)
Mammalian / WBCs"] --- B["Bottom Middle Square"] --- W4["Corner Square 4 (1 mm²)
Mammalian / WBCs"]
    end

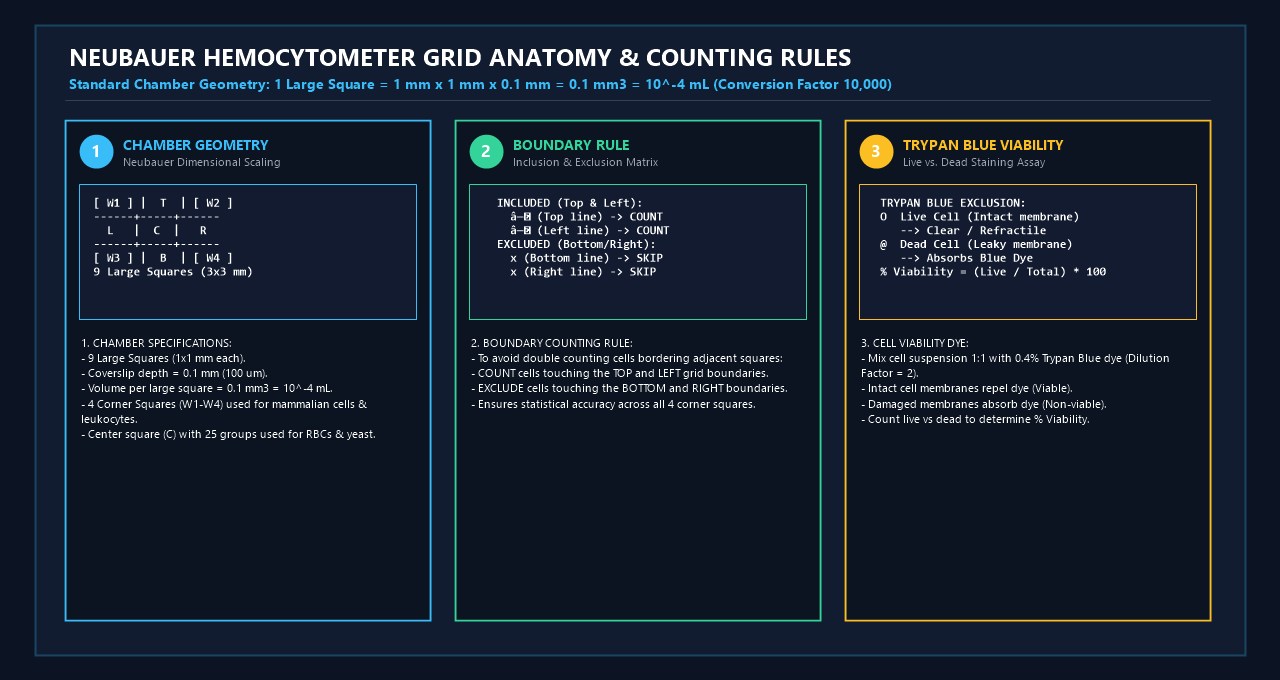

4.1 Standard Chamber Dimensions & Volumes

- Total Etched Grid Area: $3\text{ mm} \times 3\text{ mm} = 9.0\text{ mm}^2$, subdivided into 9 large primary squares ($1.0\text{ mm}^2$ each). - Chamber Fluid Depth: Exactly $0.100\text{ mm}$ ($100\text{ }\mu\text{m}$). - Volume of 1 Large Corner Square: $V = 1.0\text{ mm} \times 1.0\text{ mm} \times 0.1\text{ mm} = 0.1\text{ mm}^3 = 10^{-4}\text{ cm}^3 = \mathbf{10^{-4}\text{ mL} = 100\text{ nL}}$ - Volume of Entire 9-Square Grid: $V_{\text{total}} = 9 \times 0.1\text{ mm}^3 = 0.9\text{ mm}^3 = \mathbf{0.9\text{ }\mu\text{L} = 9 \times 10^{-4}\text{ mL}}$

4.2 Which Squares to Count?

- Mammalian Cell Lines (HeLa, HEK293, T-cells, Stem Cells): Count the 4 large corner squares ($W_1, W_2, W_3, W_4$). Each square is $1\text{ mm} \times 1\text{ mm}$, subdivided into 16 smaller squares to guide the eye. - Red Blood Cells (RBCs) & Brewing Yeast: Because yeast and RBCs are much smaller ($4\text{–}7\text{ }\mu\text{m}$) and present at much higher densities ($10^7\text{–}10^9\text{ cells/mL}$), count the 5 sub-squares inside the central $1\text{ mm}^2$ square (the 4 corner sub-squares and 1 center sub-square).

4.3 The Inclusion / Exclusion Boundary Rule

To prevent counting the same cell twice across adjacent squares, microscopists adhere to the universal "Top and Left" rule (or "Bottom and Right" rule): - COUNT: Any cell touching or overlapping the Top or Left boundary lines of the square. - DO NOT COUNT: Any cell touching the Bottom or Right boundary lines.

5. Mathematical Formulas & Derivations

5.1 Cell Concentration Formula ($C$)

$\mathbf{C = \left( \frac{\text{Total Live Cells Counted}}{N_{\text{squares}}} \right) \times 10,000 \times \text{DF} \quad (\text{cells/mL})}$

Where: - $N_{\text{squares}}$ is the number of large $1\text{ mm}^2$ squares counted (typically $4$). - $10,000$ (or $10^4$) is the chamber conversion factor ($1 / 10^{-4}\text{ mL}$). - $\text{DF}$ is the dilution factor ($\text{DF} = \frac{V_{\text{cell}} + V_{\text{dye}}}{V_{\text{cell}}}$).

5.2 Total Yield in Suspension ($N_{\text{total}}$)

$\mathbf{N_{\text{total}} = C \times V_{\text{stock}}}$

Where $V_{\text{stock}}$ is the total liquid volume of your cell suspension in milliliters ($\text{mL}$).

5.3 Percentage Cell Viability

$\mathbf{\text{Viability (\%)} = \left( \frac{\text{Viable Live Cells}}{\text{Viable Live Cells} + \text{Non-Viable Dead Cells}} \right) \times 100\%}$

5.4 Subculture Seeding Volume Formula ($V_{\text{seed}}$)

To determine how much cell suspension volume to pipette into a new culture vessel:

Where: - $N_{\text{target}}$ is the required number of cells for the new flask (e.g., $1.5 \times 10^6\text{ cells}$). - $C_{\text{viable}}$ is the viable cell concentration ($\text{cells/mL}$).

5.5 Variable Reference Table

6. Step-by-Step Computational Walkthrough

Let us calculate the cell density, viability, total yield, and passaging volume for a confluent $T75$ flask of human embryonic kidney ($\text{HEK293T}$) cells:

flowchart TD
    STEP1["Step 1: Record Microscopy Raw Data
Live = 160 cells | Dead = 16 cells in 4 squares | DF = 2 | V_stock = 12 mL"] --> STEP2["Step 2: Calculate Average Cells Per Square
Avg Live = 160 / 4 = 40.0 cells/square"]
    STEP2 --> STEP3["Step 3: Calculate Concentration (cells/mL)
C = 40.0 × 10,000 × 2 = 800,000 cells/mL (8.0 × 10⁵ cells/mL)"]
    STEP3 --> STEP4["Step 4: Calculate Culture Viability
% Viability = [160 / (160 + 16)] × 100 = 90.9%"]
    STEP4 --> STEP5["Step 5: Calculate Total Yield & Seeding Volume
Total Yield = 8.0 × 10⁵ × 12 mL = 9.6 × 10⁶ viable cells
Seeding 2.0 × 10⁶ cells requires V_seed = 2.50 mL"]

1. Step 1: Input Observations: - Viable (clear) cells in 4 corner squares: $160\text{ cells}$. - Non-viable (blue) cells in 4 corner squares: $16\text{ cells}$. - Dilution: $1:1$ Trypan Blue dye mix ($\text{DF} = 2$). - Total stock volume ($V_{\text{stock}}$): $12.0\text{ mL}$. - Desired seeding target for new flask: $2.0 \times 10^6\text{ cells}$.
2. Step 2: Calculate Mean Cells Per Large Square: $\bar{N}_{\text{live}} = \frac{160}{4} = \mathbf{40.0\text{ live cells / square}}$
3. Step 3: Calculate Viable Cell Concentration ($C$): $C = 40.0 \times 10,000 \times 2 = \mathbf{800,000\text{ cells/mL} = 8.0 \times 10^5\text{ cells/mL}}$
4. Step 4: Determine Culture Viability Percentage: $\text{Viability} = \left( \frac{160}{160 + 16} \right) \times 100\% = \left( \frac{160}{176} \right) \times 100\% = \mathbf{90.91\%}$
5. Step 5: Calculate Total Available Cell Yield: $N_{\text{total}} = 8.0 \times 10^5\text{ cells/mL} \times 12.0\text{ mL} = \mathbf{9.60 \times 10^6\text{ total viable cells}}$
6. Step 6: Calculate Seeding Volume for New Flask ($V_{\text{seed}}$): $V_{\text{seed}} = \frac{2.0 \times 10^6\text{ cells}}{8.0 \times 10^5\text{ cells/mL}} = \mathbf{2.50\text{ mL}}$ (Add $2.50\text{ mL}$ cell stock $+ 7.50\text{ mL}$ fresh medium to reach $10.0\text{ mL}$ final volume).

7. Visual Explanations & Neubauer Grid Anatomy

graph TD
    LOAD_SAMPLE{"Prepare 10 µL Cell Suspension"}
    LOAD_SAMPLE --> COVERSLIP["Place Heavy Optical Coverslip on Rails"]
    COVERSLIP --> CAPILLARY["Introduce Pipette Tip at Notch
Capillary Action fills Chamber without Overflow"]
    CAPILLARY --> MICROSCOPE["Focus at 100x / 400x Brightfield"]
    MICROSCOPE --> DENSITY_CHECK{"Is Count Between 20 - 50 Cells/Square?"}
    DENSITY_CHECK -->|"Too Crowded (>100 cells)"| DILUTE_MORE["Dilute Sample 1:5 or 1:10 and Reload"]
    DENSITY_CHECK -->|"Too Sparse (<15 cells)"| CENTRIFUGE["Centrifuge and Resuspend in Smaller Volume"]
    DENSITY_CHECK -->|"Optimal (20-50 cells)"| COUNT_EXEC["Execute 4 Corner Counts using Top & Left Rule"]

8. Comparative Analysis & Laboratory Standards

8.1 Counting Chamber Model Specifications

8.2 Standard Culture Vessel Seeding Densities

9. Practical Real-World Applications

Example 1: Passaging CHO Cells in Monoclonal Antibody Production

A bioprocess engineer harvests a suspension CHO-K1 cell culture from an orbital shake flask. - Counts in 4 Large Squares: $180\text{ live cells}, 20\text{ dead cells}$ ($1:1$ Trypan blue dilution, $\text{DF} = 2$). - Viable Concentration: $C = \left( \frac{180}{4} \right) \times 10^4 \times 2 = \mathbf{9.0 \times 10^5\text{ cells/mL}}$ - Viability: $\frac{180}{200} \times 100\% = \mathbf{90.0\%}$. - Seeding Target: Inoculating $2.0 \times 10^6\text{ cells}$ into a new $100\text{ mL}$ bioreactor requires pipetting $V_{\text{seed}} = \frac{2.0 \times 10^6}{9.0 \times 10^5} = \mathbf{2.22\text{ mL}}$.

Example 2: Emergency Diagnostic Lumbar Puncture (CSF Pleocytosis)

A patient with high fever, neck stiffness, and confusion undergoes an emergency lumbar puncture. - Undiluted CSF Loaded into Neubauer Chamber ($\text{DF} = 1$): - Across 4 large corner squares, the technician counts $1,200\text{ polymorphonuclear neutrophils}$. - WBC Concentration: $C = \left( \frac{1,200}{4} \right) \times 10^4 \times 1 = \mathbf{3,000,000\text{ cells/mL} = 3,000\text{ WBCs/}\mu\text{L}}$ - Normal adult CSF contains $< 5\text{ WBCs/}\mu\text{L}$. This massive pleocytosis confirms acute bacterial meningitis, prompting immediate intravenous cephalosporin therapy.

Example 3: Brewing Yeast Pitching Rate Calculation

A master brewer pitches lager yeast (Saccharomyces pastorianus) into a $1,000\text{ L}$ batch of wort at $12^\circ\text{Plato}$. - Required pitch rate $= 1.0 \times 10^6\text{ cells/mL per } ^\circ\text{Plato} \rightarrow 1.2 \times 10^7\text{ cells/mL}$. - Total yeast cells required $= 1.2 \times 10^7\text{ cells/mL} \times 10^6\text{ mL} = \mathbf{1.2 \times 10^{13}\text{ yeast cells}}$. - Hemocytometer slurry count $= 1.5 \times 10^9\text{ cells/mL}$. Slurry volume needed $= \frac{1.2 \times 10^{13}}{1.5 \times 10^9} = \mathbf{8.0\text{ Liters}}$.

Example 4: Normalizing Cell Inputs for MTT Cytotoxicity Assays

In drug screening, researchers seed exactly $1.0 \times 10^4\text{ cancer cells}$ per well in a 96-well plate ($100\text{ }\mu\text{L}$ volume). - Required working concentration $= \frac{1.0 \times 10^4\text{ cells}}{0.1\text{ mL}} = \mathbf{1.0 \times 10^5\text{ cells/mL}}$. - Using the hemocytometer density of the harvested stock ($2.5 \times 10^6\text{ cells/mL}$), the stock is diluted $25\times$ with complete growth medium before plating.

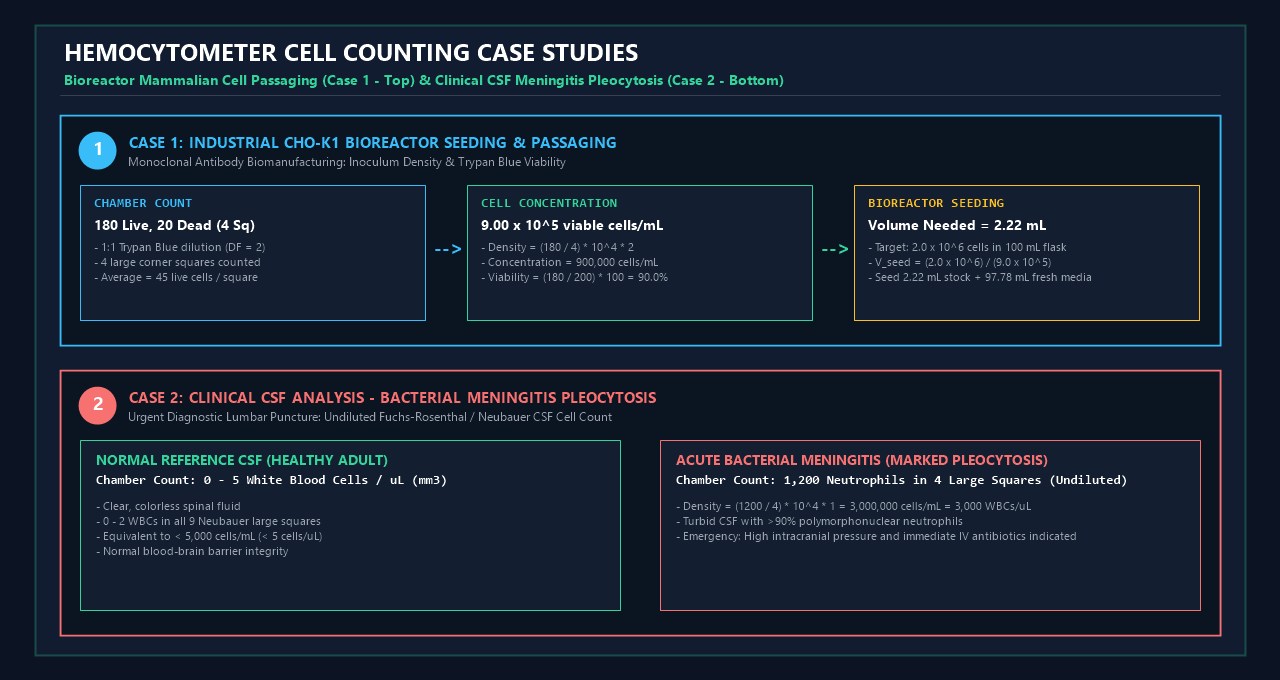

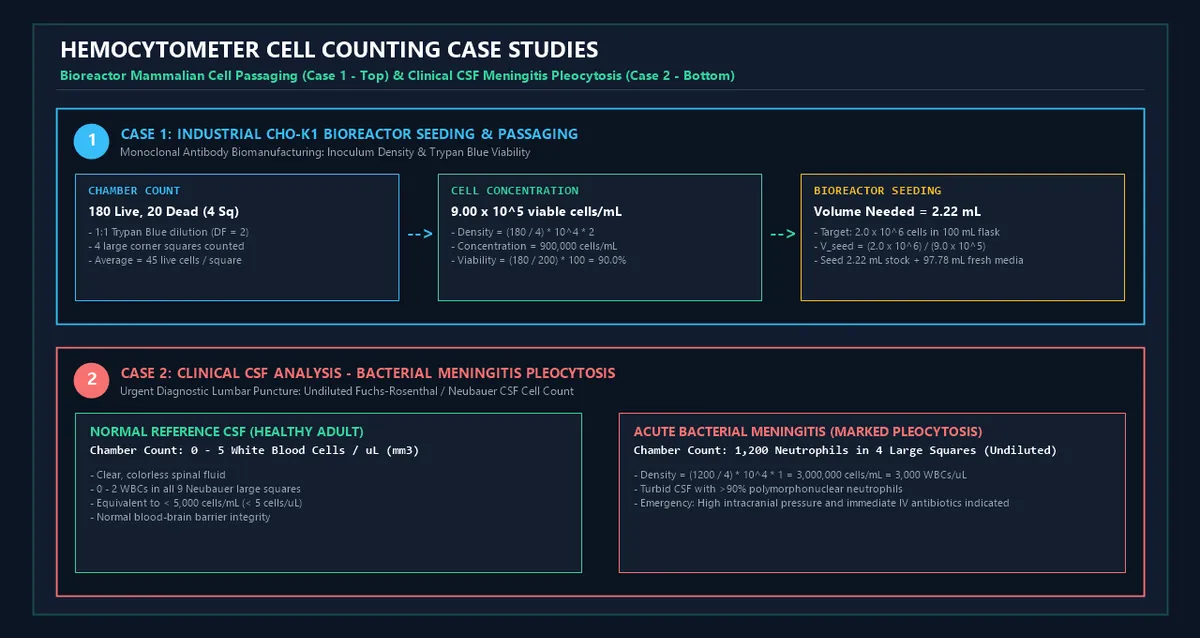

10. In-Depth Case Studies

Case Study 1: Industrial CHO-K1 Bioreactor Seeding & Passaging

- Background: In commercial biopharmaceutical manufacturing, maintaining consistent seeding density is critical for glycosylation quality and antibody titer. - Harvest & Chamber Count: A $50\text{ mL}$ seed train flask is harvested. A $1:1$ Trypan Blue dilution ($\text{DF}=2$) is loaded into an Improved Neubauer chamber: - 4 Large Corner Squares: $46, 44, 48, 42\text{ live cells}$ (Total $= 180$) and $20\text{ dead cells}$. - Calculations: - Viable Concentration: $C = (180 / 4) \times 10^4 \times 2 = \mathbf{9.00 \times 10^5\text{ cells/mL}}$. - Viability: $\mathbf{90.0\%}$ (Meets the $>85\%$ threshold required for subculturing). - Total Stock Yield: $9.00 \times 10^5 \times 50\text{ mL} = \mathbf{4.50 \times 10^7\text{ viable cells}}$. - Inoculation Execution: Seeding a new $100\text{ mL}$ production flask at $2.0 \times 10^5\text{ cells/mL}$ requires $2.0 \times 10^7\text{ total cells}$. The technician pipettes $V_{\text{seed}} = 2.0 \times 10^7 / 9.0 \times 10^5 = \mathbf{22.22\text{ mL}}$ of stock culture.

Case Study 2: Clinical CSF Analysis in Acute Bacterial Meningitis

- Background: A 19-year-old college student presents to the Emergency Department with severe headache, photophobia, nuchal rigidity, and petechial rash. - Lumbar Puncture: Cerebrospinal fluid appears cloudy/turbid. An aliquot of uncentrifuged, undiluted CSF ($\text{DF}=1$) is loaded immediately into a Neubauer hemocytometer. - Laboratory Count: - Corner Squares 1 to 4: $290, 310, 305, 295\text{ leukocytes}$ (Total $= 1,200\text{ cells}$). - Calculations: $C = \left( \frac{1,200}{4} \right) \times 10^4 \times 1 = \mathbf{3.0 \times 10^6\text{ cells/mL} = 3,000\text{ WBCs/}\mu\text{L}}$ - Clinical Significance: Identifies severe neutrophilic pleocytosis ($>1,000\text{ WBCs/}\mu\text{L}$), triggering urgent isolation and intravenous ceftriaxone + vancomycin administration, saving the patient's life.

11. Advantages of Hemocytometer Chamber Counting

1. Direct Gold Standard Reference: Unaffected by electronic calibration drifts, optical autofluorescence, or cell shape anomalies that can mislead automated counters.
2. Simultaneous Viability Assessment: Direct visual distinction of membrane integrity via Trypan Blue exclusion dye.
3. Extreme Cost Efficiency: A single high-grade quartz hemocytometer can be cleaned, autoclaved, and reused for decades with zero consumable cartridge costs.
4. Immediate Qualitative Feedback: Allows simultaneous visual inspection for bacterial/fungal contamination, cell clumping, and morphologic apoptosis.

12. Methodological Complexities & Artifacts

graph LR
    subgraph Artifacts["Hemocytometry Errors & Artifacts"]
        E1["Chamber Overfilling / Flooding
Floating coverslip increases volume!"]
        E2["Cell Clumping / Aggregation
Incomplete enzymatic detachment"]
        E3["Trypan Blue Toxicity
Incubation > 10 min kills live cells"]
        E4["Boundary Bias
Inconsistent top/bottom counting"]
    end
    Artifacts -->|"Results In"| ERR["⚠️ Inaccurate Concentration & Seeding Failure"]

1. Coverslip Floating (Overfilling): If excess liquid overflows into the lateral V-trenches, surface tension lifts the coverslip, increasing the chamber depth beyond $0.1\text{ mm}$ and falsely inflating cell counts by $20\%\text{–}40\%$.
2. Trypan Blue Cytotoxicity: Trypan Blue is cytotoxic. Cells left in dye solution for more than 10 minutes begin taking up dye non-specifically, producing falsely low viability readings.
3. Incomplete Trypsinization & Clumping: Clusters of 3+ cells must be thoroughly triturated before loading. If clumping persists, counts become statistically invalid.

13. Common Mistakes to Avoid

12. Frequently Asked Questions (FAQ)

What is the standard volume of one large corner square in a Neubauer hemocytometer?

The volume of one large square ($1\text{ mm} \times 1\text{ mm}$) at a standard depth of $0.1\text{ mm}$ is: $V = 1.0\text{ mm} \times 1.0\text{ mm} \times 0.1\text{ mm} = 0.1\text{ mm}^3 = \mathbf{10^{-4}\text{ mL} = 100\text{ nL}}$

Why do we multiply by $10,000$ (or $10^4$) in the formula?

Because $1\text{ mL} = 1,000\text{ mm}^3$, one large square ($0.1\text{ mm}^3$) represents $\frac{1}{10,000}\text{th}$ of a milliliter. Multiplying by $10,000$ converts the count in one square into the number of cells per milliliter ($\text{cells/mL}$).

How is cell viability calculated using Trypan Blue?

$\text{Viability (\%)} = \left( \frac{\text{Number of Viable Clear Cells}}{\text{Total Cells Counted (Live + Dead)}} \right) \times 100\%$ Live cells with intact membranes exclude the dye, while dead cells stain dark blue.

What is the boundary inclusion/exclusion rule?

To avoid double counting, count all cells touching the Top and Left boundary lines of a square, and exclude any cells touching the Bottom and Right boundary lines.

What is the ideal cell concentration for hemocytometer counting?

The optimal counting range is $20\text{ to }50\text{ cells per large square}$ (corresponding to $2.0 \times 10^5\text{ to } 1.0 \times 10^6\text{ cells/mL}$ in the loaded chamber).

What if my cell suspension is too dense (>100 cells/square)?

Perform a serial dilution (e.g., $1:5$ or $1:10$) in PBS or growth media before mixing with Trypan Blue, and multiply by the combined dilution factor.

What if my cell suspension is too dilute (<15 cells/square)?

Centrifuge your harvest tube (e.g., $300 \times g$ for 5 minutes), aspirate a portion of the supernatant, and resuspend the cell pellet in a smaller volume (e.g., $2\text{ mL}$ instead of $10\text{ mL}$) before recounting.

15. Expert Tips for Cell Biologists & Technicians

1. Verify Newton's Refraction Rings: When pressing the heavy coverslip onto the moistened chamber rails, look for iridescent rainbow interference bands (Newton's rings), confirming proper physical contact and exact $0.1\text{ mm}$ depth.
2. Mix Thoroughly Immediately Before Loading: Cells settle rapidly in pipette tips. Always vortex or gently invert your cell-dye mixture immediately before loading the chamber.
3. Load by Pure Capillary Action: Place the pipette tip at the notch where the coverslip meets the glass floor and release $10\text{ }\mu\text{L}$. Allow capillary force to pull the liquid smoothly across the grid without pushing air bubbles or flooding trenches.
4. Clean with $70\%$ Ethanol and Lint-Free Lens Paper: Never clean hemocytometers with coarse paper towels, which scratch precision grid etchings.

16. Summary Checklist

• ✔ Mount Coverslip: Ensure Newton's interference rings are visible on glass support rails.
• ✔ Prepare Sample: Mix cell suspension $1:1$ with $0.4\%$ Trypan Blue ($\text{DF} = 2$).
• ✔ Load Chamber: Introduce $10\text{ }\mu\text{L}$ per side; verify absence of bubbles or flooding.
• ✔ Microscopic Survey: Focus under $10\times$ objective ($100\times$ total magnification).
• ✔ Count 4 Corner Squares: Record live and dead counts using the Top-and-Left boundary rule.
• ✔ Calculate Concentration: Apply $C = (\text{Total Live} / 4) \times 10,000 \times \text{DF}$.
• ✔ Calculate Viability & Yield: Determine $\%$ Viability and total available cells ($C \times V_{\text{stock}}$).
